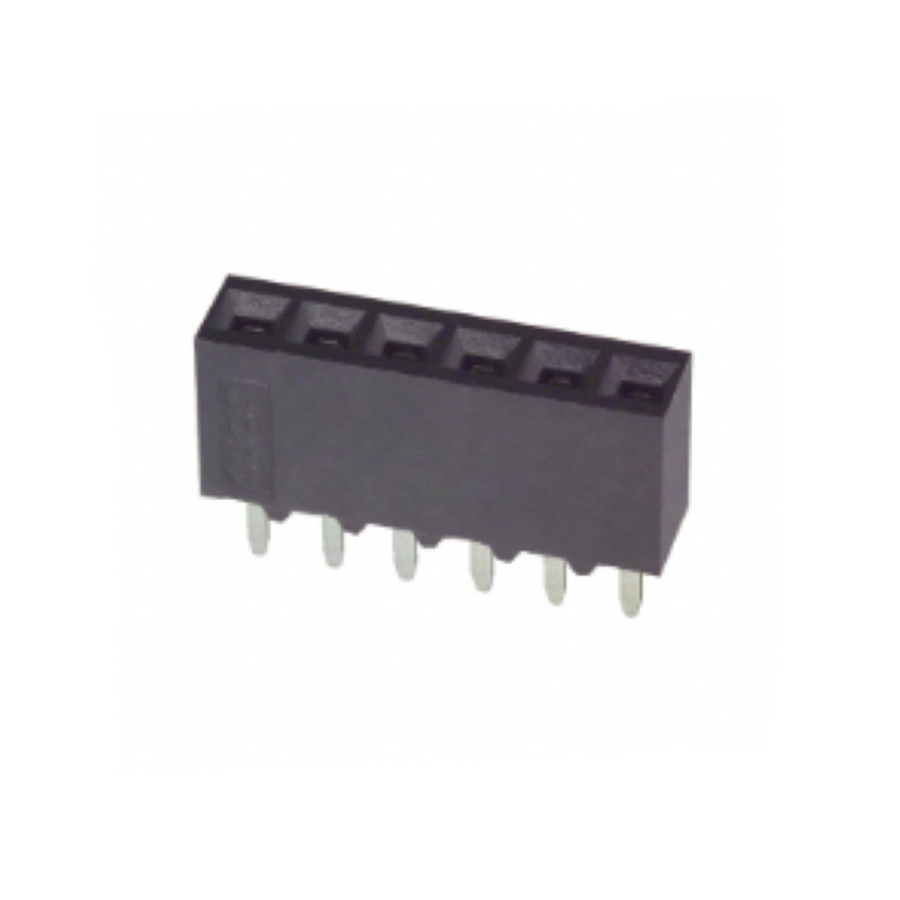

535541-4
Manufacturer:
TE Connectivity
Mfr.Part #:
535541-4
Datasheet:
Description:
Headers and Wire Housings Through Hole Connector, Receptacle, Socket Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Height | 3.56 mm |
| Packaging | Bulk |
| Voltage Rating | 750 V |
| Depth | 3.56 mm |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Gold |
| Lead Length | 3.175 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 2 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 333 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 6 |
| ELV | Non-Compliant |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polyester |
| Contact Style | Socket |
| Contact Resistance | 12 MΩ |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 2.4 mm |
| Tail Length | 3.18 mm |
| Plating Thickness | 50 µm |
| Stackable | Yes |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 762 nm |
| High Temperature Compatible | No |
| Termination Post Length | 3.18 mm |
| PCB Mount Retention | Without |
Stock: 1579
Distributors
pcbx
pcbxUnit Price$1.13865
Ext.Price$1.13865
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.13865 | $1.13865 |
| 10 | $1.06817 | $10.68170 |
| 25 | $1.00205 | $25.05125 |
| 50 | $0.94003 | $47.00150 |
| 100 | $0.88185 | $88.18500 |
| 300 | $0.82727 | $248.18100 |
| 500 | $0.77607 | $388.03500 |
| 1000 | $0.72803 | $728.03000 |
| 3000 | $0.68297 | $2048.91000 |
| 5000 | $0.64070 | $3203.50000 |
| 10000 | $0.60106 | $6010.60000 |
